Cast-in-place diamond tactile paving is a specialized on-site formed tactile ground surface indicator (TGSI) system designed to guide and protect visually impaired pedestrians. It is widely used in sidewalks, pedestrian crossings, transit stations, ramps, and barrier-free access routes. The “diamond” texture provides both directional feedback and slip resistance, making it an important part of modern accessible urban infrastructure.
This system is installed directly on-site by applying resin-based or cementitious materials and forming a raised diamond-shaped pattern before curing.
Unlike pre-cast tiles, it is integrated into the existing surface, creating a seamless and durable tactile layer that conforms to complex site conditions.
The diamond pattern provides continuous tactile feedback underfoot and through a white cane.
It helps users:
Identify safe walking paths
Detect changes in direction or surface conditions
Navigate public spaces more independently and safely
This improves accessibility in both urban and commercial environments.
In addition to tactile function, the raised diamond texture significantly improves surface friction.
It reduces slipping risks in rainy conditions and on sloped surfaces such as ramps, station entrances, and overpasses, enhancing safety for all pedestrians, not only visually impaired users.
Because it is cast in place, this system bonds directly to asphalt or concrete surfaces.
This creates:
Smooth transitions without edges or gaps
Better durability under heavy foot traffic
Compatibility with irregular or curved areas
It is especially useful in retrofit projects where existing pavement must be upgraded.
Modern cast-in-place systems use high-performance materials such as MMA resin or modified epoxy.
They offer:
Resistance to UV aging and color fading
Strong adhesion to base surfaces
Long service life under heavy pedestrian use
Stability in rain, heat, and freeze-thaw cycles
Installation is relatively efficient and does not require full pavement replacement.
Key advantages include:
On-site forming reduces prefabrication needs
Short curing time (especially MMA systems)
Minimal disruption to pedestrian traffic
Cast-in-place diamond tactile paving is designed to support universal design principles and accessibility regulations in many countries.
It helps cities meet requirements for barrier-free infrastructure and inclusive public space design.
This system is widely used in:

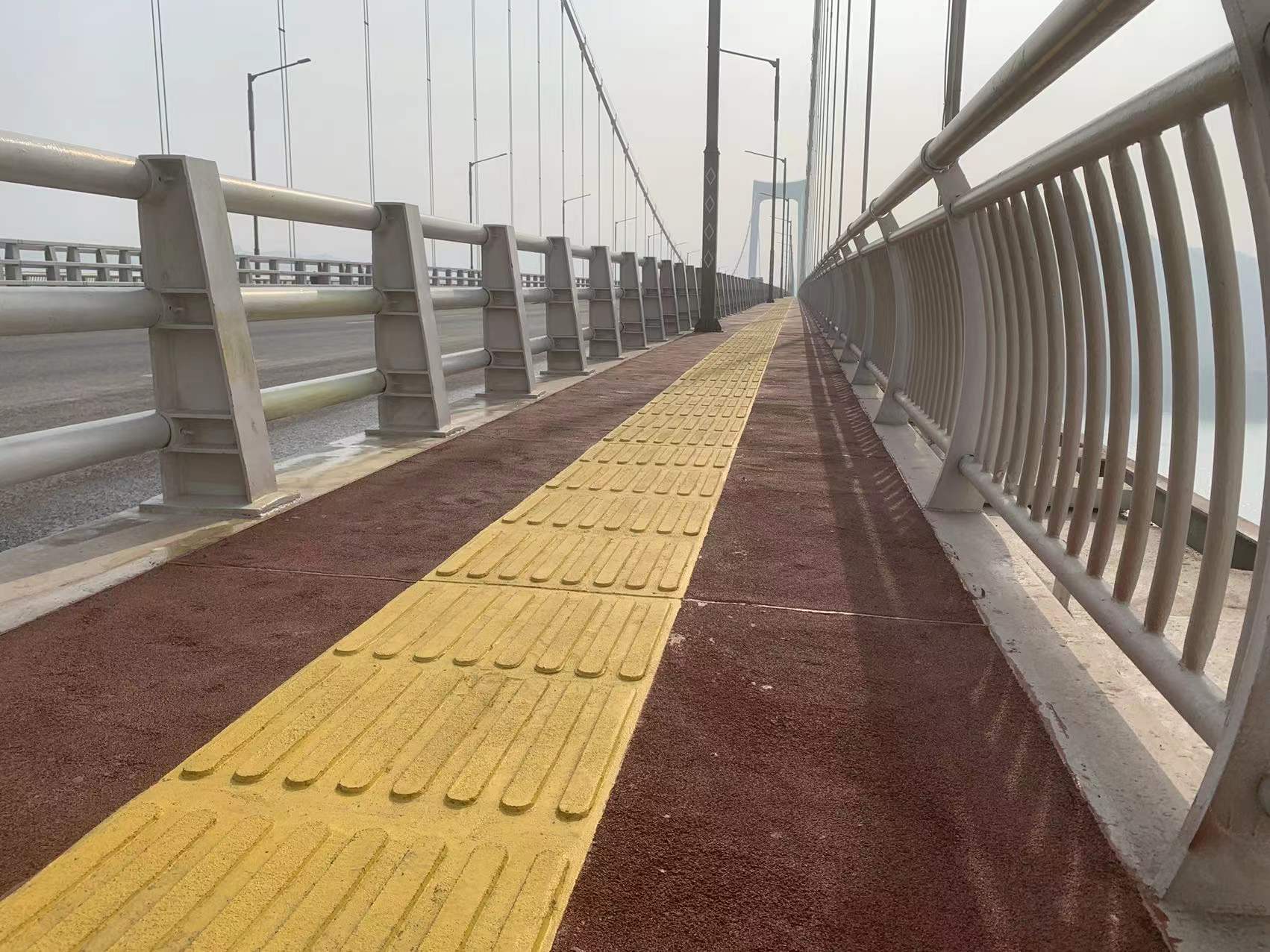

Urban sidewalks and pedestrian corridors
Railway and subway station platforms
Bus stops and transfer hubs
Ramps, crossings, and building entrances
Commercial plazas and public squares
Cast-in-place diamond tactile paving is a critical component of inclusive urban design. By combining tactile guidance, anti-slip performance, durability, and seamless installation, it enhances both safety and accessibility in public spaces, helping create more user-friendly and barrier-free cities.
